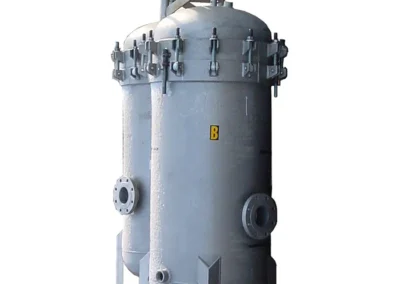

liquid cartridge filter vessel rentals

We offer various filter vessels for rent that meet a broad range of liquid and gas applications at flow rates up to 2,040 GPM (7,720 LPM), and in both single-cartridge and multi-cartridge formats. Most details of design, materials, construction, and workmanship of our vessels conform to ASME design code.

Have questions? Reach out to us – we’re here to help!

Applications

• Liquid
• Gas
• Food & Beverage
• Chemical Processes
• Petrochemical
• Paints & Coatings
• Industrial

Features and Benefits

• Built in accordance with ASME boiler and pressure vessel code.
• Available in 150 PSI (10.3 bar) and 300 PSI (20.7 bar) designs.
• Non-code design and construction (parallel to code standards) available.
• Mechanical cover lifts standard on most models.
• S85 and S102 feature hydraulic cover lifts (available on all models as an option).
• Dual-purpose cartridge seats for use with double open-end and 2-222 O-ring single open-end cartridges.
• Materials of construction: carbon steel, 304 stainless steel, 316 stainless steel
• Buna-N O-ring closure seal provides positive cover-sealing.
• Viton* elastomer, neoprene, ethylene propylene rubber, and fluoropolymer elastomer (O-rings are also available for temperatures up to 500°F / 261°C)
• All S models feature swing bolts with closures for quick cleaning and servicing.

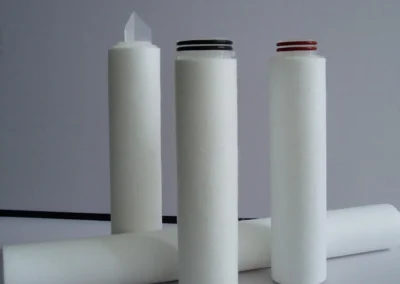

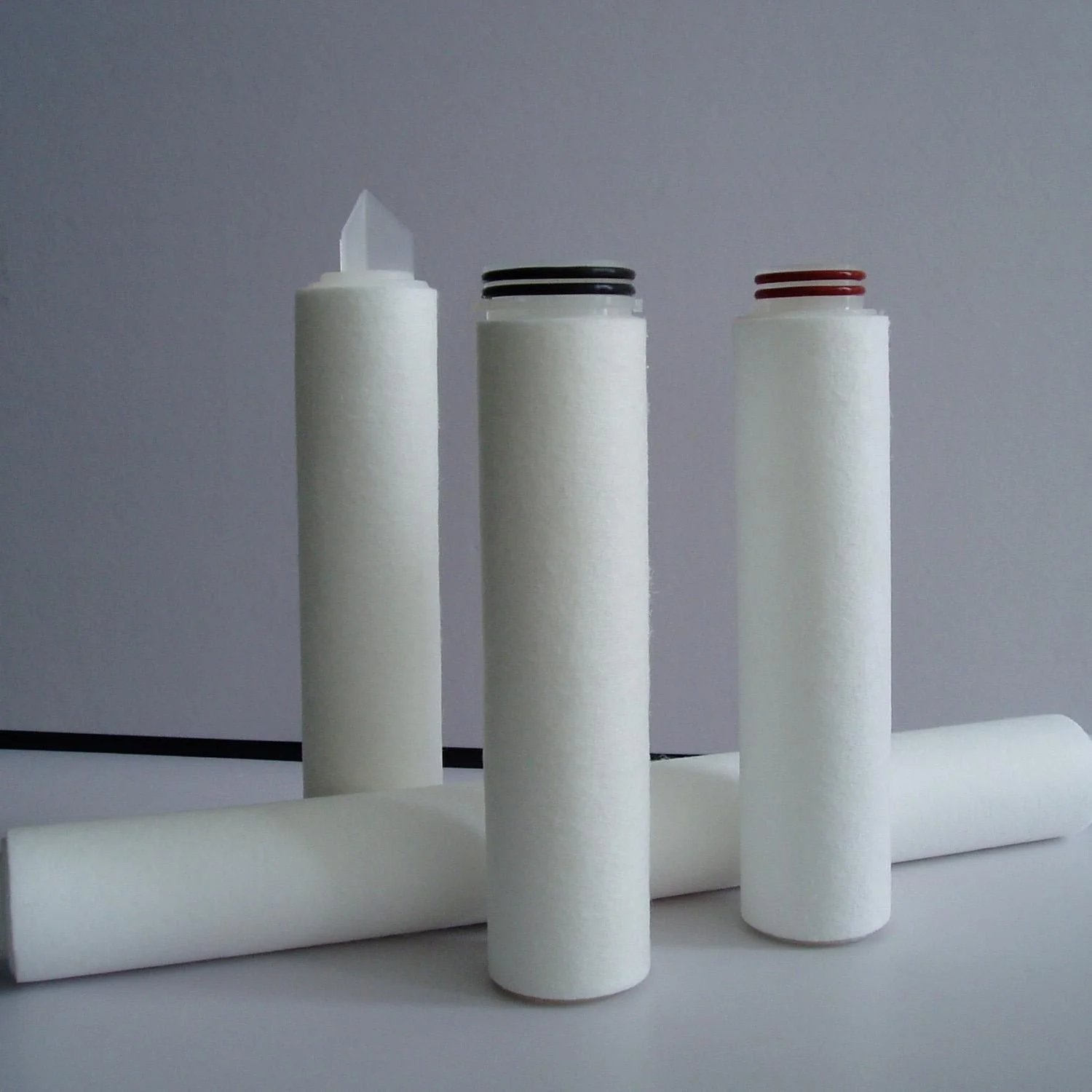

• Models available with double-open-end (DOE) or single-open-end (SOE) cartridges.
