clay treater vessel rentals

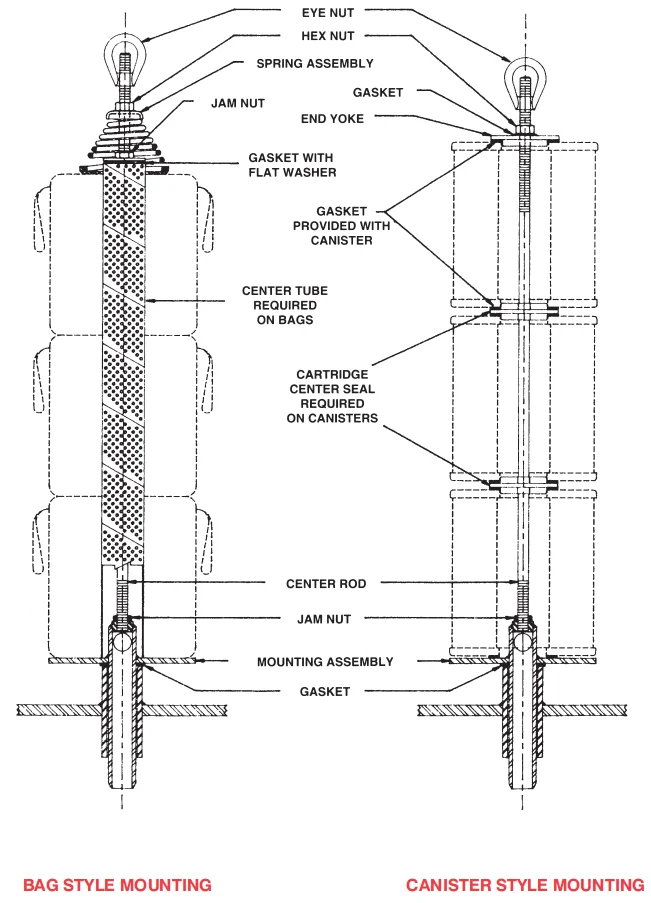

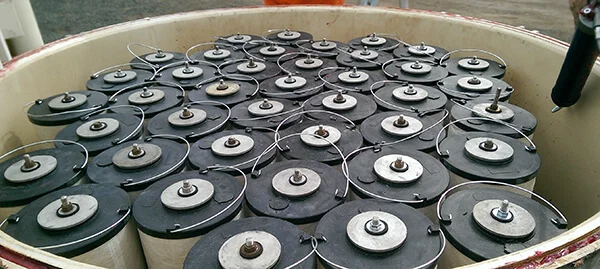

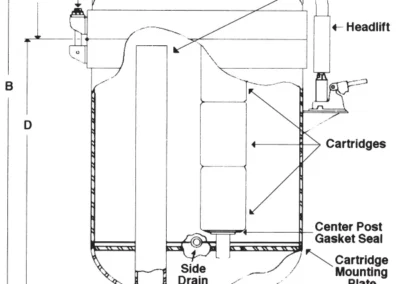

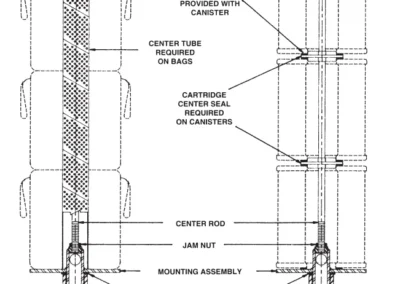

Clay Treaters are used in multiproduct pipeline installations, and wherever surfactant laden or discolored fuel is a problem. They can be configured to accept bags or canisters.

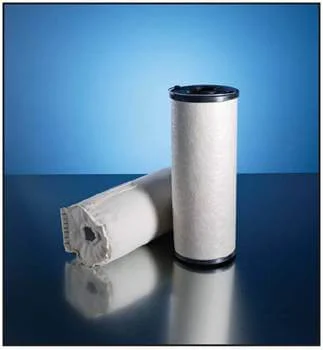

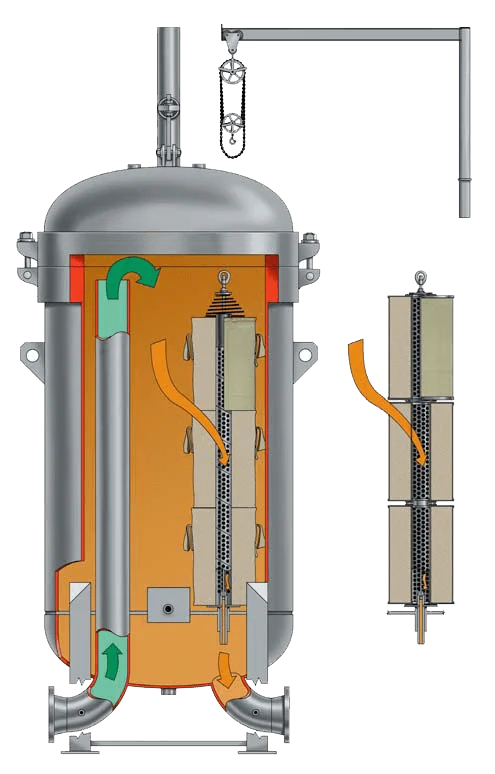

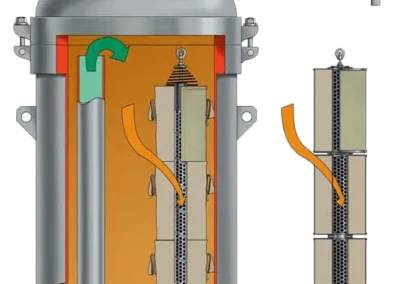

Clay treaters will continuously adsorb surfactants, color and additives from jet fuel when used with Facet replaceable clay elements. Housings are designed for easy servicing and low maintenance. All are built to ASME Code, Section VIII. Standard and optional accessories and connections are available to facilitate piping and installation requirements.

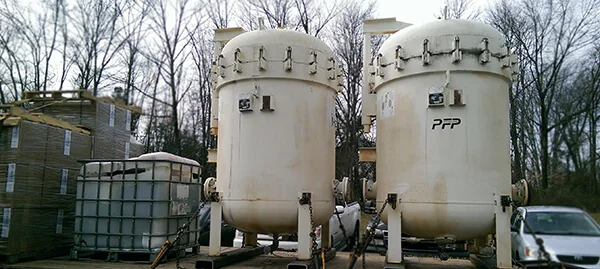

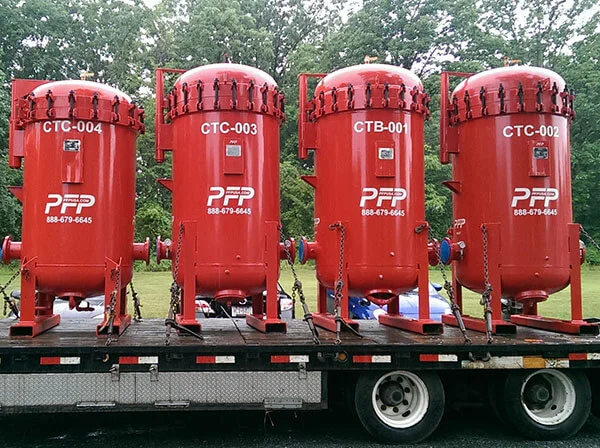

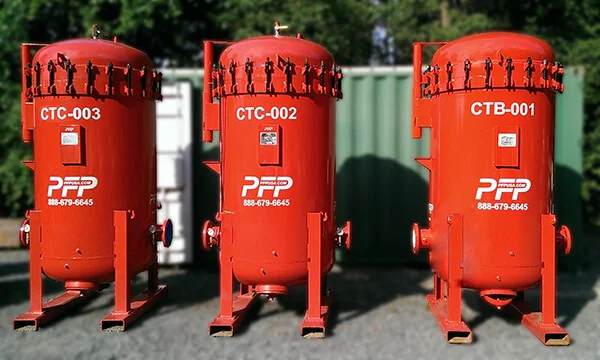

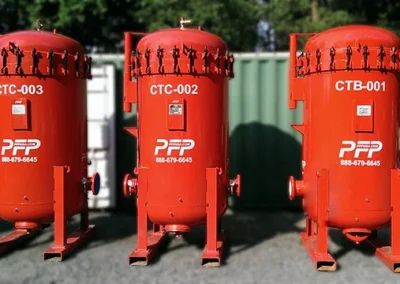

PFPUSA has one of the largest Clay Treater Rental Fleets in the country. We can utilize a single Clay Treater or manifold multiple Clay Treaters together to achieve your desired flow rate and maximize the residence time required to properly clean your fuel from a variety of problems.
On average, we are able to treat your fuel for around $0.05 a gallon. What does it cost to down grade it?
Have questions? Reach out to us – we’re here to help!
Materials of Construction
Carbon Steel
Interior – Epoxy Coated
Exterior – Prime Coated

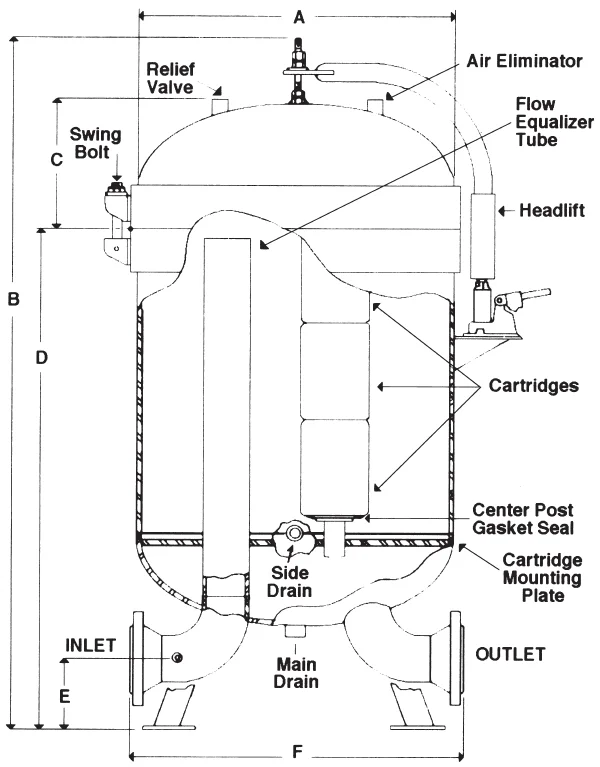

- Welded carbon steel construction
- ASME Code, Section VIII construction, stamped and certified
- Design pressure: 150 psi @ 250°F
- Manual Vent Relief
- Bottom Drains with Cam and Groove Connections for easy vac downs
- Dial Pressure Gauges on Inlet and Outlet
- Sample Ports on Outlet
- Swing bolt closure
- Buna-N closure gasket
- Automatic air eliminator
- Differential pressure gauge
- Pressure relief valve
- Sampling probe

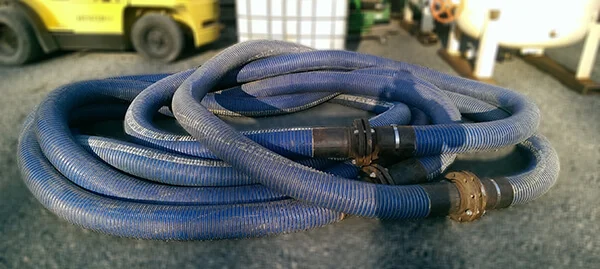

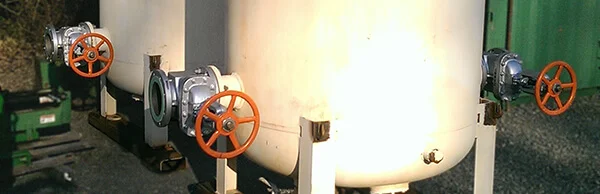

We can supply you with the temporary Cargo Hose, Gate Valves, Tees, Elbows, Pump, Portable Containment, and many more to provide you a complete turnkey set up. We have service crews available to set up, monitor, and breakdown the temporary systems as well.
Give us a call to discuss your application….888-679-6645!
